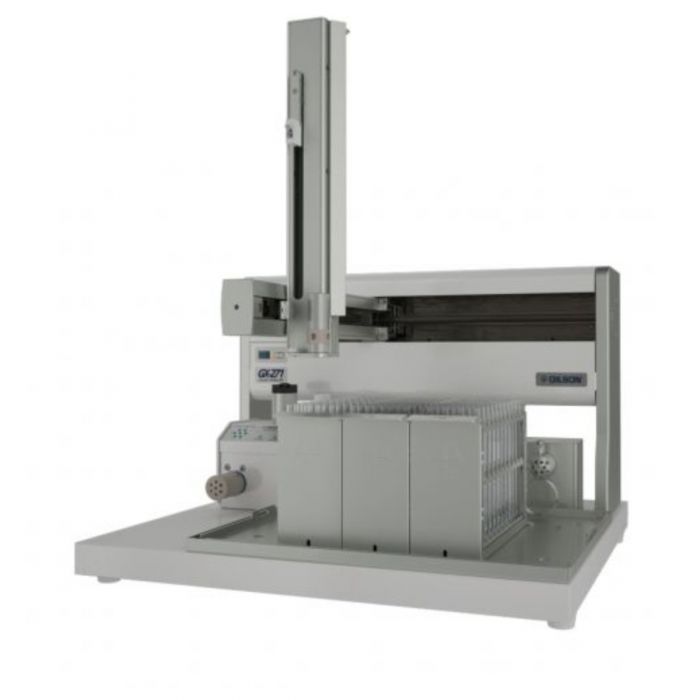

GX-271 Liquid Handler

This small footprint, medium capacity liquid handler and autosampler offers small-to-large volume injection, fraction collection, and liquid handling capabilities. Its dynamic syringeless pumping system is capable of delivering microliters to hundreds of milliliters, with no change in hardware.

Innovative Injection Modules

This mid-throughput liquid handler can be configured with a Direct Injection Module for injection onto an HPLC or LC/MS system. An innovative injection port design that attaches directly to the injection valve reduces void volumes and minimizes carryover associated with calibrated connection tubing, allowing. injection volumes from 2 µL up to 25 mL.The continuous flow path design on all injection valves allows the system flow to continue even as the injection valve switches from load to inject, ensuring consistent pressure and flow.

Versatile, Space-saving Design

With a small footprint of only 23 inches of linear bench space and with a mid-size bed capacity, you’ll have the perfect blend of size, performance, and capacity. On-bed reservoirs provide access for up to four solvents without utilizing a position on the bed. The modular design supports the use of Code 20, 200, or 34X Series Racks and easily accommodates a variety of tubes, vials, and microplates.

Specifications

GX-271 Liquid Handler

Communication

Ethernet

RS-232

GSIOC

Contact Control

Two inputs, transistor-transistor logic (TTL) contact closures

Two relay outputs

Two switched +24V DC 1A outputs

One safety input

NOTICE Switching to voltages higher than 30V or greater than 1A of current may damage the instrument.

Dimensions (W x D x H)

59.7 x 54.1 x 57.1 cm (23.5 x 21.3 x 22.5 in.)

NOTE Dimensions do not include the VERITY® Syringe Pump.

NOTE The height dimension does not include the Z-arm, which will vary depending on where the Z-arm is clamped.

Environmental Conditions Indoor use
Altitude: up to 2000 m
Temperature range: 5°C–40°C
Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C.
Front Panel Two digit display and indicator lights for power and error.
Fuse Two 5 x 20 mm, "T" type, 3.15A fuses
Horizontal Motion Strength

X: 2.0 kg (4.5 lbs.)

Y: 2.0 kg (4.5 lbs.)

Liquid Contact Materials*

*Refer to the Materials appendix for more details.

Description Material
Probe Guide PET
Probe 316L Stainless Steel
Rinse Station PET
Transfer Port

PEEK

PET

PTFE

316L Stainless Steel

Tubing (Drain) Tygon®
Liquid Level Detection (LLD) Capacitive liquid level detection is supported when using tubes in aluminum racks.
Power Requirements Frequency: 50 to 60 Hz
Voltage: 100–240V (Universal Input)
Current rating: 2.0A for 100–120V; 1.0A for 220–240V
Power consumption: 250W maximum
Probe Rinse Probe rinsing occurs through up to three dedicated rinse stations capable of performing inside and outside rinses, and a flowing outside rinse when the system includes a GX Rinse Pump.
Safety and Compliance The instrument has been certified to safety standards specified for Canada, Europe, and the United States. Refer to the instrument rear panel label and the Declaration of Conformity document for the current standards to which the instrument has been found compliant.
Sampler Type X/Y/Z instrument with stationary rack design.
Software Control PC control via Ethernet communication and TRILUTION® software
Vertical Punch Strength 4.5 kg (10.0 lbs.)

Weight*

*with Z-arm

22 kg (48 lbs.)
