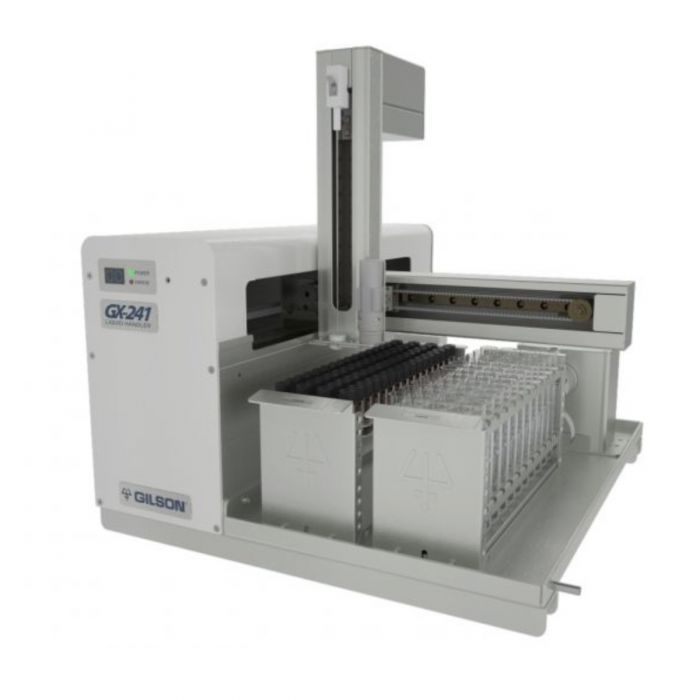

GX-241 Liquid Handler
Smaller Capacity Handler Covering a Wide Range of Volumes
With a compact syringe pump you can achieve volumes from 100 µL to 10 mL. By using the direct injection port with a volume range of 1 µL to 5 mL, samples can be delivered to the valve with minimal dead volume and no connecting tubing, reducing carryover and contamination. This liquid handler also features two transfer ports for delivering samples to off-bed detection devices, which is ideal for Flow Injection Analysis (FIA) to conductivity, colorimeter, and absorbance detectors.
Space-saving, Yet Flexible
Utilizing only 39 cm of linear bench space, the two-rack capacity liquid handler has the ability to hold hundreds of samples ranging from 2-mL vials to 100-mm test tubes. This flexible platform can also hold up to four shallow or deep well 96-well microplates.
Specifications
| GX-241 Liquid Handler | ||
| Sampler Type | Small Footprint X/Y/Z with stationary rack design | |
| Horizontal Motion Strength | 0.3 kg (0.7 lbs) | |
| Vertical Punch Strength | 1.8 kg (4 lbs) | |
| Probe Rinse | Probe rinsing occurs through a dedicated rinse station with static and flowing rinse capabilities | |
| Front Panel | Two digit display and indicator lights for Power and Error | |
| Contact Control |
Four inputs (contact closure, TTL), two relay outputs, and two switched +24V DC 1A outputs NOTE Switching voltages higher than 30V or greater than 1 Amp of current may damage the instrument |
|
| Communication | Ethernet | |
| Software Control | Computer control via Ethernet and TRILUTION® LH Software | |
| Environmental Conditions | Indoor Use Only | |
| Altitude: Up to 2000m | ||
| Temperature range: 5° - 40°C | ||
| Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C | ||
| Safety and Compliance | The liquid handler has been certified to safety standards required in Canada (UL), Europe, and the United States (CE & RoHS). Refer to the instrument rear panel label and the Declaration of Conformity document for the current standards to which the instrument has been tested. | |
| Power Requirements |
GX-241 Liquid Handler Voltage: 24V DC Current rating: 2.0A Power Supply Voltage: 24V DC Current rating: 6.25 Amp, 150 Watts |
|
|
Dimensions* (W x D x H) *with Z-Arm installed and connected |
39 x 50 x 47 cm (15.4 x 19.8 x 18.5 in) | |
|
Weight* *with Z-Arm installed |
7.7 kg (17 lbs) | |
Supporting Literature
| Reference Guides | |
|---|---|
| Probe Reference Guide | Download (EN) |
| User's Guides | |
| VERITY 241 Liquid Handler User Guide | Download (EN) |
| VERITY 241 User Guide | Download (EN) |
| Technical Product Documentation | |
| GX 241 Liquid Handler Specifiction Method | Download (EN) |
| Verity 241 Installation Qualification Procedures | Download (EN) |
| ISO Documentation | |
| VERITY 241 Declaration of Conformity | Download (EN) |
| ASPEC 241 Declaration of Conformity | Download (EN) |
| Application Notes | |
| Selecting the Appropriate Laboratory Equipment The Coomassie Bradford Protein Assay Performed Manually Using Gilson PIPETMAN M Multichannel and PIPETMAN L and Automated Using GX 274 ASPEC and GX 241 Liquid Handler | Download (EN) |
| Selecting the Appropriate Laboratory Equipment The Coomassie Bradford Protein Assay Performed Manually Using Gilson PIPETMAN M Multichannel and PIPETMAN L and Automated Using GX 274 ASPEC and GX 241 Liquid Handler | Download (EN) |
