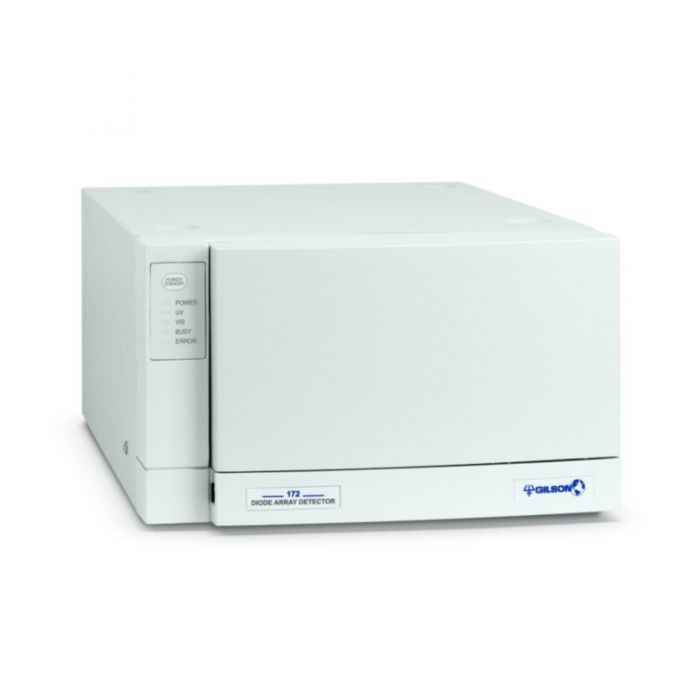

171/172 Diode Array Detector
Using flexible fiber optic light paths, the 171 and 172 Diode Array Detectors (DAD) deliver accurate UV/Vis and spectrum data with up to seven specific wavelengths simultaneously. With an interchangeable flow cell design, these detectors are ideal for analytical, semi-preparative, and preparative HPLC applications.
Versatile Flow Cell Configurations
The fiber optic light path of both the 171 and 172 Detectors can be configured in a fixed or remote flow cell design. The remote flow cell configuration yields virtually no peak broadening because the power of the detector is located directly at the column outlet.
Specifications
| 171 / 172 Diode Array Detector | ||
| Model | 172 DAD | 171 DAD |
| Wavelength | 172 DAD: 190 - 610 nm | 171 DAD: 190 - 720 nm |
| Wavelength Accuracy |
± 1 nm Repeatability<0.1 nm |
|
| S/N Ratio | 172 DAD: <2*10E-05 AU | 171 DAD: <3*10E-05 AU |
| Detection Type (pixels) | 172 DAD: 512-element photodiode array | 171 DAD: 256-element photodiode array |
| Drift | 基线漂移：<0.0005 AU/hour (254 nm, ASTM E685-93) | |
|
Wavelength Temperature Drift： 172 DAD: <0.005 nm/°C |
Wavelength Temperature Drift： 171 DAD: <0.006 nm/°C | |
| Short Term Noise (signal/noise ratio) | 172 DAD: <0.00002 AU (254 nm, according to ASTM E685-93) | 171 DAD: <0.00003 AU (254 nm, according to ASTM E685-93) |
| Light Source | Deuterium and tungsten lamps (2000 hours expected lamp life) | |
| Remote Flow Cell | Optional | |
| Resolution | 172 DAD: 0.8 nm/pixel | 171 DAD: 2.2 nm/pixel |
| Lamp Warm-up Time | 15 – 30 minutes | |
| Front Panel | POWER/STANDBY soft key and LED indicator lights for POWER, UV, VIS and ERROR | |
| Contact Control | Two open collector outputs and two contact inputs | |
| Software Control | Computer control via Ethernet communication and TRILUTION® LC Software | |
| Data Acquisition | Between 5 and 10 points/sec with TRILUTION® LC Software | |
| Environmental Conditions | For indoor use only | |
| Altitude: 2000 m | ||
| Temperature: 5° – 40°C | ||
| Air pressure: 75 – 105 kPa | ||
| Pollution degree: 1 or 2, in accordance with IEC 66 | ||
| Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C | ||
| Safety Approvals/EMC Compliance | Certified to UL, CSA, CE, and C-Tick Safety and EMC standards | |
| Fuse | Two 5 x 20 mm “T” type 1.6A | |
| Power Requirement | Frequency: 50 - 60 Hz | |
| Voltage: 100 – 240V | ||
| Power consumption：100W | ||
| Dimensions (w x d x h) | 26.5 x 43.5 x 15.6 cm (10.4 x 17.1 x 6.2 in) | |
| Weight | 172 DAD: 7.3 kg (16 lb) | 171 DAD: 6.8 kg (15 lb) |
Supporting Literature
| User's Guides | |
|---|---|
| 171 and 172 Diode Array Detector User Guide | Download (EN) |
| 171 and 172 Diode Array Detector User Guide Addendum | Download (EN) |
| ISO Documentation | |
| 171 and 172 Diode Array Detector Declaration Of Conformity | Download (EN) |
| Technical Product Documentation | |
| 171 and 172 Diode Array Detector Installation Qualifications | Download (EN) |
